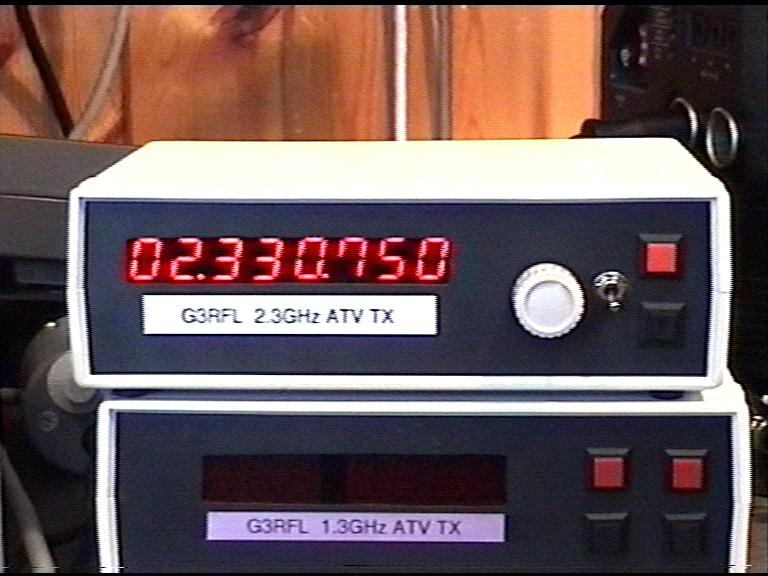

ATV 13c/m 11WATT FM TRANSMITTER SYNTH TUNABLE AND LED DISPLAY

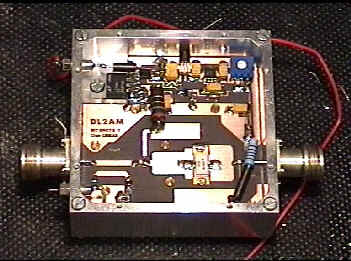

This is a Stealth TX from Farnell with my Software blown into the surface mount chip and added LED 8 Digit Display... This unit tunes in 125KHz steps and 1MHz steps and remembers the frequency on power down...... The output normally 10m/W was potted down to 1m/W and taken to a DL2AM 30db Amplifier to give 1 Watt output.... This then feeds the DL2AM 11.5 Watt Amplifier see on the right hand picture...................... G3RFL
